The Hinds™ Instruments Exicor^® OIA is the Premier Birefringence Measurement System for the evaluation of Lenses, Parallel Faced Optics and Curved Optics at normal and oblique incident angles. The system is built on Hinds Instruments award winning Photoelastic Modulator (PEM) based Exicor Birefringence Measurement technology. This next generation birefringence measurement system is providing the industry with new capabilities in the analysis and development of next generation lithographic lenses, lens blank and high value optics.

The system utilizes PEMs to modulate the polarization state of a light beam and advanced detection and demodulation electronics to measure how an optic has changed the polarization state. This results in the measurement of optical retardation of one polarization state relative to another at 90°. Birefringence and Fast Axis orientation, as well as theoretical residual stress, can be evaluated with this data.

Hinds Instruments and the Exicor Oblique Incident Angle Technology has been selected to evaluate optical birefringence in research and production by the world leaders in lithographic lens blanks and finished lenses. Our systems are unsurpassed.

Exicor OIA DUV view of the front inside — *Figure 1. The front inside of the Exicor OIA DUV.*

Exicor OIA sample viewed close up — *Figure 2. A close-up view of a sample in the Exicor OIA System.*

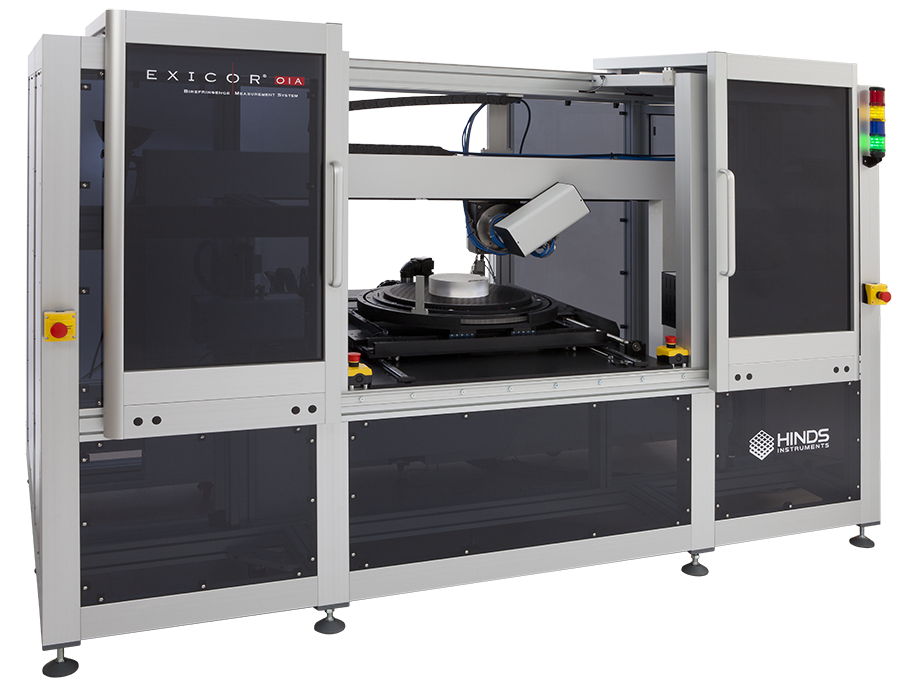

Exicor OIA System — *Figure 3. Exicor OIA system*

System Details

Custom configurations and accessories are available for these models. Please contact a representative for more details.

Features

Exicor^® OIA Software
Automatic scan of Parallel flats and Spherical lens types
Asphere can be scanned with Manual macro program
2D Maps of retardation and fast Axis orientation
Scan Statistics
Stage Forward Load Position (free access to samples stage from above)
UV and Laser Light Enclosure with safety Interlocks
Emergency OFF shut down buttons
System Status Light Tower
User Work Station with Computer and Monitor

Specifications

VIS Retardation measurement range:	0 to 300+nm
DUV Retardation measurement range:	0 to 90+nm
VIS Retardation Resolution / Repeatability:	0.001nm / ±0.03 (up to 3nm, 1% thereafter)
DUV Retardation Resolution / Repeatability:	0.001nm / ± 0.08 nm (up to 4nm, 2% thereafter)
Retardation Accuracy:	Better than ±0.2nm expected
Angular Resolution / Repeatability:	0.01° / <±0.5°
VIS Light Source Wavelength:	632.8nm
DUV Light Source Wavelength:	193nm
Modulation Technique/Frequency:	PEMLabs^TM Photoelastic Modulator / 50/60 kHz
Demodulation Analysis Technique:	Hinds Instruments Signaloc^TM Lock-in Amplifier
