Lock-in Amplifiers

Signaloc 2100 Lock-In Amplifier front panel

Signaloc™- A research grade lock-in amplifier

Request Quote
Request Quote

Designed for use in Hinds’ Exicor® Systems, the Signaloc™ is now available for anyone who can use a dual-phase, analog, single frequency lock-in amplifier.

  • You choose the frequency – any frequency between 20 and 200 kHz.
  • You choose 1f and 2f capability*.



*Both the 1f and 2f must be between 20 kHz and 200 kHz. If you require demodulation of the 1f and 2f at the same time, then two Signalocs will be required.

Signaloc 2100 Lock-In Amplifier front panel
Figure 1. Front panel, Signaloc™ 2100
Signaloc 2100 Right-side View
Figure 2. Right-side view of Signaloc™ 2100

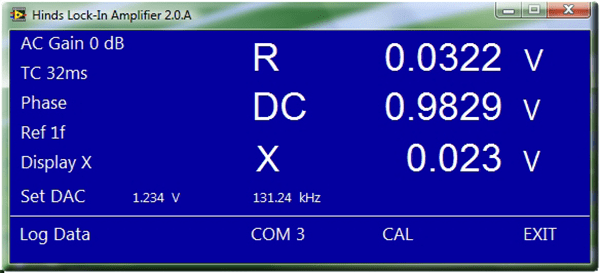

Signaloc 2100 Screenshot
Figure 3. Signaloc™ 2100 Screenshot

Component Details

Custom configurations and accessories are available for this product family. Please contact a representative for more details.

Features
  • One User defined frequency, 20 kHz to 220 kHz range
  • Display:
  • R magnitude (V or mV RMS)
  • DC value (V or mV)
  • X – in Phase value (V or mV)
  • Y – Quadrature (V or mV)
  • Θ – Phase Angle of signal with respect to reference (degrees)

Includes:

  • LabVIEW driver
  • SignalocTM Software
  • Power Supply
Specifications
Signal Input
Gain (user selectable)0, 3, 6, 9, 12, 15 dB
Gain Accuracy±1% max for input signals ≥ 1 mV
±5% max for input signals ≥ 1 mV
Phase Accuracy±3° max for input signals ≥ 1 mV
Phase Resolution0.01°
Reference InputSquare wave "0 to 5V"
Output Filter Time Constants (user selectable)4, 10, 18, 32, 64, 132, 260, 516 mSec
DAC Output0-5V (Stability: +/- 15mV)
