High Speed Optical Choppers

The Optical Choppers offered by Hinds Instruments are resonant devices designed to work at one frequency. We offer two ways to chop light: a High Speed Optical Chopper (HSOC) and a Photoelastic Modulator (or PEM).

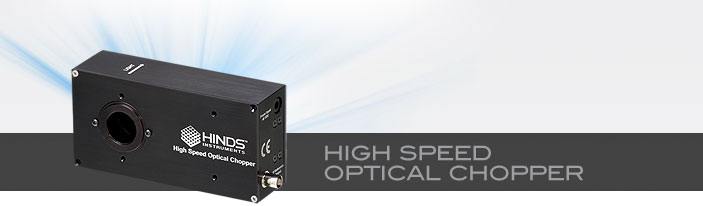

High Speed Optical Chopper

The HSOC is calibrated for one wavelength, from 400 nm – 750 nm. However, it can be used within a +/- 10% range from the center wavelength without a change in calibration. The frequencies to choose from are 40, 50, and 60 kHz. The HSOC comes in a small, single enclosure package. All optics and drive electronics are included.

Photoelastic Modulator

The PEM is the most versatile choice. The wavelength range can be from 130nm – 18µm depending on the model of optical head chosen and the PEM can be used for non-chopping applications in separate set ups. Its operation as a chopper over large wavelength ranges requires additional optics (one linear and one circular polarizer) to convert the PEM into a chopper system. These can be obtained from Hinds Instruments or purchased separately by the user. The basic PEM comes in three modules: the optical head, the drive electronics and the control electronics. Frequencies range from 20-84 kHz.

All Hinds chopper options offer:

  • Wide acceptance angle
  • No moving parts
  • Minimal heat generation
  • No safety concerns
  • Small footprint and lightweight
  • Quiet operation
  • Low power consumption
  • Meets CE and RoHS compliance regulations



Selecting Your Optical Chopper

High Speed
Optical Chopper
 PEM
50 kHz Operation * *
Other Frequencies *
Wavelength Adjustable *
Demodulation Electronics Available * *
Software Available for Computer Control * *
Configured for >10 mW/cm2 *
Configured for < 10 mW/cm2 * *
Smallest Footprint *
Lowest Cost *

Contact us to learn more about Hinds' Optical Choppers.
