Exicor® HD Series

Home / Products / Systems / Birefringence Measurement Systems / Exicor® HD Series

Exicor 600HD

Exicor® HD Series

The new Heavy Duty Series Exicor allows customers to evaluate birefringence in their heaviest samples.

Request Quote
Request Quote

This system is suitable for inspection and testing of semiconductor wafers and photomasks. Its design and intuitive automated scanning software make it well-suited for routine evaluation of semiconductor wafers and photomasks，The newly designed Exicor® HD system is based on the low-level birefringence measurement technology of the Exicor core and precise automated motion control components. The Exicor HD is designed with an all-steel base. This design improves the efficiency and stability of the Exicor birefringence measurement system series, enabling it to meet the sample measurement requirements.

Available Models icon to encourage swiping

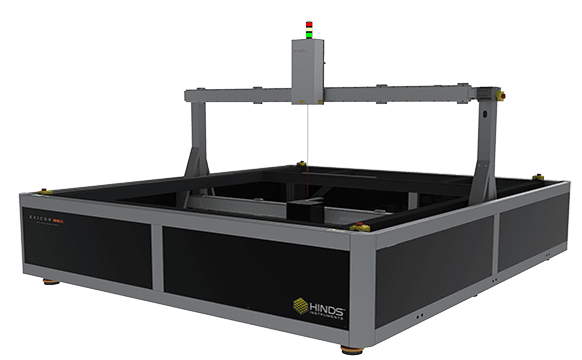

Exicor 400HD

400HD
Exicor 600HD

600HD
Exicor 800HD

800HD
Exicor 1000HD

1000HD
Exicor 1500HD

1500HD
Exicor 2000HD

2000HD
System Size: 1265mm (X) x 1414mm (Y) x 2050 (Z) 1465mm (X) x 1614mm (Y) x 2050mm (Z) 1663mm (X) x 1814mm (Y) x 2050mm (Z) 1865mm (X) x 2014mm (Y) x 2050mm (Z) 2366mm (X) x 2662mm (Y) x 2050mm (Z) 2790mm (X) x 3162mm (Y) x 2050mm (Z)
Max. Sample Size: 400mm (X) x 400mm (Y) x 400mm (Z) 600mm (X) x 600mm (Y) x 500mm (Z) 800mm (X) x 800mm (Y) x 500mm (Z) 1m (X) x 1m (Y) x 500mm (Z) 1.5m (X) x 1.5m (Y) x 500mm (Z) 2m (X) x 2m (Y) x 500mm (Z)
Max Load w/ Sample & Holder: 450 lbs. / 205 kg 1,100 lbs. / 500 kg 1,910 lbs. / 865 kg 2,910 lbs. / 1,320 kg 6,600 lbs. / 3,000 kg 11,750 lbs. / 5,400 kg

System Details

Custom configurations and accessories are available for these models. Please contact a representative for more details.

Specifications
Retardation Range:0.005 to 300+ nm
Retardation Resolution / Repeatability1, 2:0.001 nm / ± 0.015 nm
Angular Resolution / Repeatability1:0.01º / ± 0.07º
Measurement Rate / Time3:up to 100 pps / sample size dependent
Light Source Wavelength4:Various (632.8 nm standard)
Measurement Spot Diameter5:Between 1mm & 3mm native (can be as low as <50 µm)
Modulation Technique:PEMLabsTM Photoelastic Modulator
Measurement Units:nm (retardation),º (angle)
Loading Options:Front and Overhead Options
  • 1 Typical performance at 5 nm retardation
  • 2 Up to 1.5 nm, 1% thereafter
  • 3 Maximum data collection speed. Sample XY scan time dependent on stage movement parameters.
  • 4 Custom wavelengths available
  • 5 Measurement spot sizes of less than 1mm (native) require optional high resolution detector module
